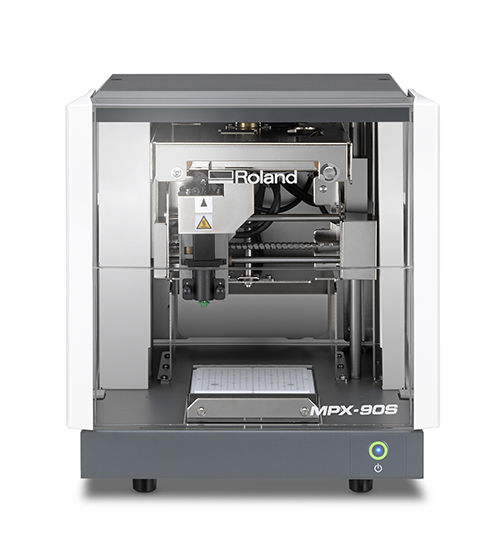

VersaSTUDIO MPX-90S Desktop Metal Printer
Perfect for gift personalisation, the VersaSTUDIO MPX-90S metal engraving machine is a cost-effective, user-friendly way to mark gold, steel, silver, titanium, brass and aluminium.
- Small investment, big profit
- Compact footprint
- Engrave photos precisely
![](https://www.rolanddg.co.nz/-/media/roland-apac/das/images/products/engravers/mpx90s/mpx90s_front_small.jpg?la=en-NZ&h=553&w=500&hash=2D14E45BBF4B98E66988546ACF29C6D7)
![](https://www.rolanddg.co.nz/-/media/roland-apac/das/images/products/engravers/mpx90s/mpx90s_front_small.jpg?la=en-NZ&h=553&w=500&hash=2D14E45BBF4B98E66988546ACF29C6D7)
Pocket-sized Personalisation
The MPX-90S lets you create a wide range of custom engraved products easily and quickly. Simple to use without special expertise and filled with profit-making potential, this is a perfect solution to start your venture into personalisation with very little initial capital.
Printing Speed
50
mm/sMax. Area
80x80
mmPhoto Keyrings
12
per hour*Personalised Pens
60
per hour*![](https://www.rolanddg.co.nz/-/media/roland-apac/das/images/products/engravers/mpx90s/mpx_less_space_mb.png?la=en-NZ&h=533&w=800&hash=1F4E41D9D940EDC97235926DA19D595A)

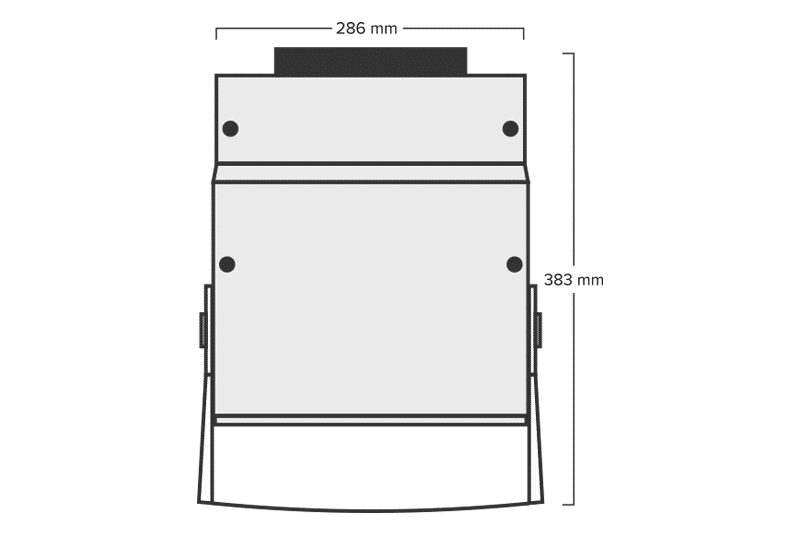

Less Space - More Opportunity
![](https://www.rolanddg.co.nz/-/media/roland-apac/das/images/products/engravers/mpx90s/home_business_key_ring_mobile.jpg?la=en-NZ&h=533&w=800&hash=8D40CAE62EB1784DAA3351B5D9489404)

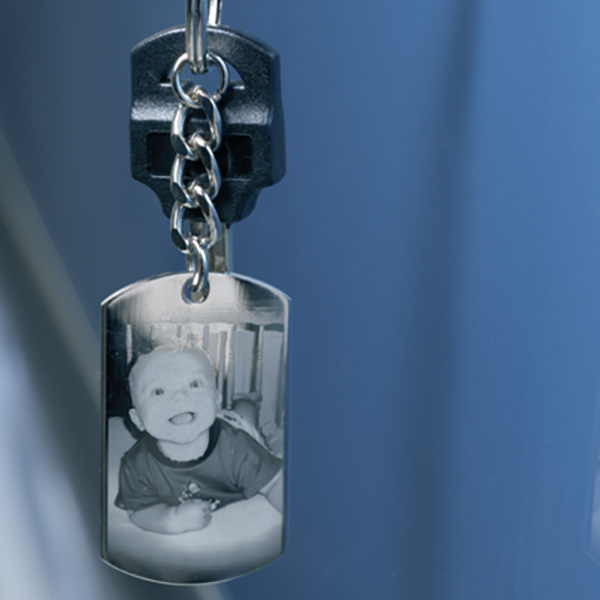

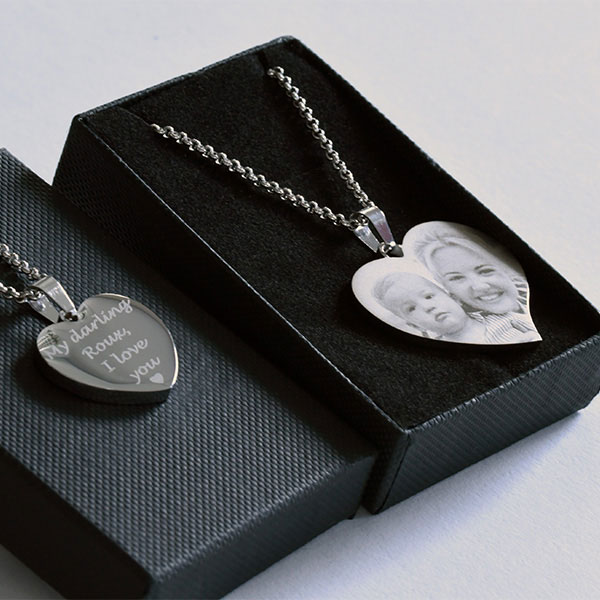

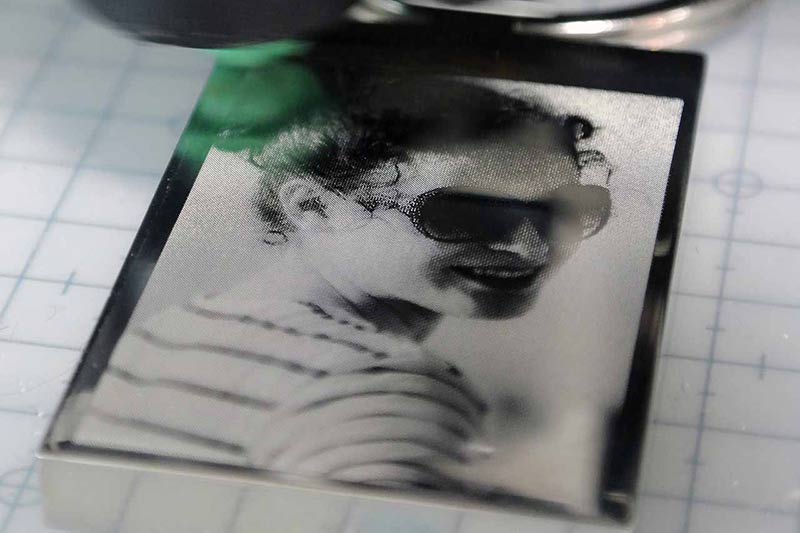

Engrave Photos on Metal
With the MPX-90S solution, you have everything you need to print text, logos and even photos onto metal items. In a matter of minutes, you can turn inexpensive blank items into highly desirable and lucrative products.
![](https://www.rolanddg.co.nz/-/media/roland-apac/das/images/products/engravers/mpx90s/desk_small_hq.jpg?la=en-NZ&h=600&w=600&hash=F3095FC78CF92EC6F780003D9CB95D85)
![](https://www.rolanddg.co.nz/-/media/roland-apac/das/images/products/engravers/mpx90s/golf2022.jpg?la=en-NZ&h=600&w=600&hash=1A8563BB623F7FF6A492258CBD18744A)
![](https://www.rolanddg.co.nz/-/media/roland-apac/das/images/products/engravers/mpx90s/pendant_mpx.jpg?la=en-NZ&h=600&w=600&hash=23D0DE0B07F2832ECEF7316E8EF7AE69)
![](https://www.rolanddg.co.nz/-/media/roland-apac/das/images/products/engravers/mpx90s/car.jpg?la=en-NZ&h=600&w=600&hash=C1D0B355886A2777BDD56020305EF61E)
![](https://www.rolanddg.co.nz/-/media/roland-apac/das/images/products/engravers/mpx90s/dog_small.jpg?la=en-NZ&h=460&w=460&hash=06A63C6EEE2D5D41D4860F47C93BD434)
Key Benefits
Great Return on Investment Quickly create high-quality products with a generous mark up. |
|
The Roland DG Legacy Make a safe investment with Roland DG’s world-renowned quality and reliability. |
|
Clean Environment The device generates no shavings or dust and does not produce odours or smoke. |
Fast Set-up and Ease of Use Plug in and start working immediately thanks to Roland DG’s user-friendly interface. |
|
Intuitive Software Included METAZA Studio included, letting you easily create designs and engrave in a simple workflow. |
|
Light and Portable Easily set up the device in any permanent space or take it to events for instant item marking. |
The Complete Solution
With the MPX-90S, you get more than just a device - you get everything you need to succeed.
Go even further with our latest desktop metal engraver*
Power your personalisation with this user-friendly software
Complete range of premium after-sales services
Mark a wide range of objects safely and securely
Additional Information
Specifications
VersaSTUDIO MPX-90S
Model | MPX-90S | ||
Imprintable material | Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, etc. *1 | ||
Loadable material size (width) × (length) × (thickness) |
|||
Max. 100 mm × 200 mm × 40 mm | |||
Imprint area |
Max. 80 mm × 80 mm |
||
Resolution | High resolution | 529 dpi | |
Photo | 353 dpi | ||
Text | 265 dpi | ||
Vector | 1058 dpi | ||
Imprint direction | Unidirectional imprinting or bidirectional imprinting *2 | ||
Imprint speed (Default) | High resolution | 33 mm/sec | |
Photo | 50 mm/sec | ||
Text | 33 mm/sec | ||
Vector | 24 mm/sec | ||
Interface | USB | ||
Power requirements | Dedicated AC adapter | Input | 100 to 240 VAC, 50/60 Hz |
Output | 19 VDC, 2.1 A | ||
Rated current | 1.6 A |
||
Power consumption | Approx. 24 W | ||
Operating noise | 70 dB (A) or less | ||
Operating environment | Temperature: 10 to 30°C (50 to 86°F), humidity: 35 to 80%RH (no condensation) | ||
External dimensions (width) × (depth) × (height) |
286 mm × 383 mm × 308 mm (11.26 in. × 15.08 in. × 12.13 in.) | ||
Weight | 10.8 kg | ||
Included items | AC adapter, power cord, test-use imprinting material, USB cable, Safety Precautions, etc. |
*1 Vickers hardness [HV] of the imprinting surface must be 200 or less.
*2 Selectable with Windows driver
System Requirements for USB Connection
Model | MPX-90S | ||
Computer | Model preinstalled with Windows 11, 10, or 8.1 (32- or 64-bit), or upgraded computer originally preinstalled with Windows 8.1 or later | ||
USB cable |
|||
Use the included USB cable. |
Accessories
![](https://www.rolanddg.co.nz/-/media/roland-apac/das/images/global/global-logos/warranty_logo_3year_parts_productpages.png?la=en-NZ&h=533&w=533&hash=910F2F1608C25683242AE04AC14F601C)
![](https://www.rolanddg.co.nz/-/media/roland-apac/das/images/global/global-logos/warranty_logo_3year_parts_productpages.png?la=en-NZ&h=533&w=533&hash=910F2F1608C25683242AE04AC14F601C)
The Peace of Mind That Comes with Buying a Roland DG Device
With the MPX-90S you get the same built-to-last reliability and unmatched service and support that Roland DG devices are famous for. Like all Roland DG products, the MPX-90S was designed and manufactured at a state-of-the-art, ISO-certified facility. With a 3 Year Parts ‘N All Warranty, you have the peace of mind knowing your device is backed by one of the most comprehensive warranty packages in the industry.
