GR Series Features

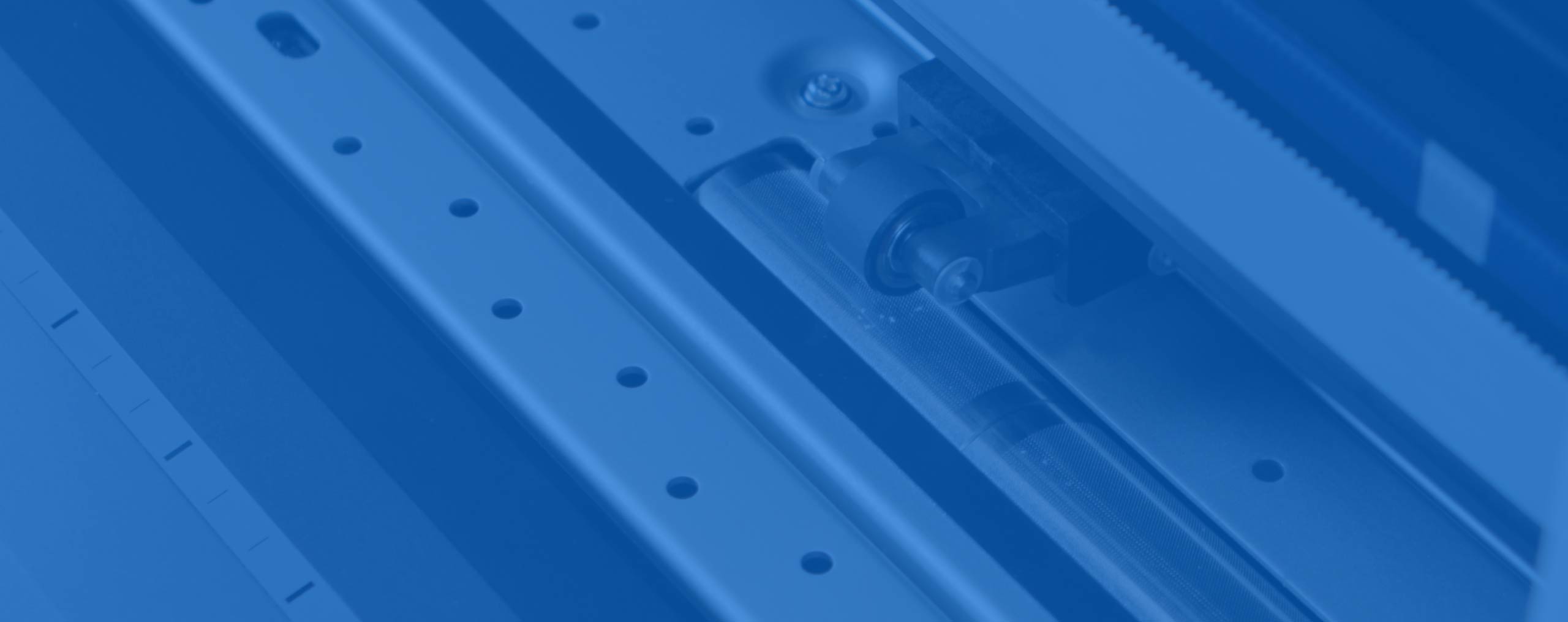

Get Into the Groove with Perforated Cutting
A new blade holder features two blade positions with the rear position designed for perforated cutting and creasing. A specially designed cutting groove in the platen enables the blade to cut clean and avoid unwanted damage to your blade. This makes the GR Series Cutters perfect for creating pop-out decals and packaging prototypes.

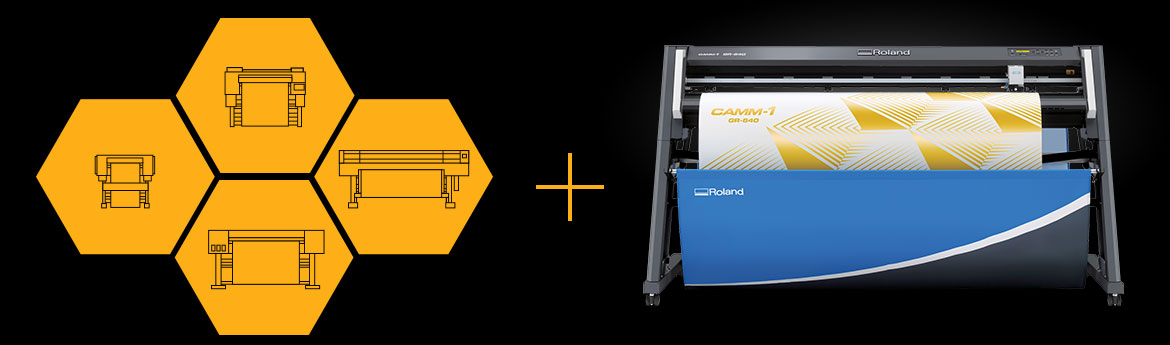

Combine with Your Printer for Print then Cut Workflow
Roland DG's Quadralign™ optical registration system automatically recognises printer crop marks on printed media. Combine an existing large format printer with a GR Series Cutter for an exact and efficient contour cut graphics workflow.

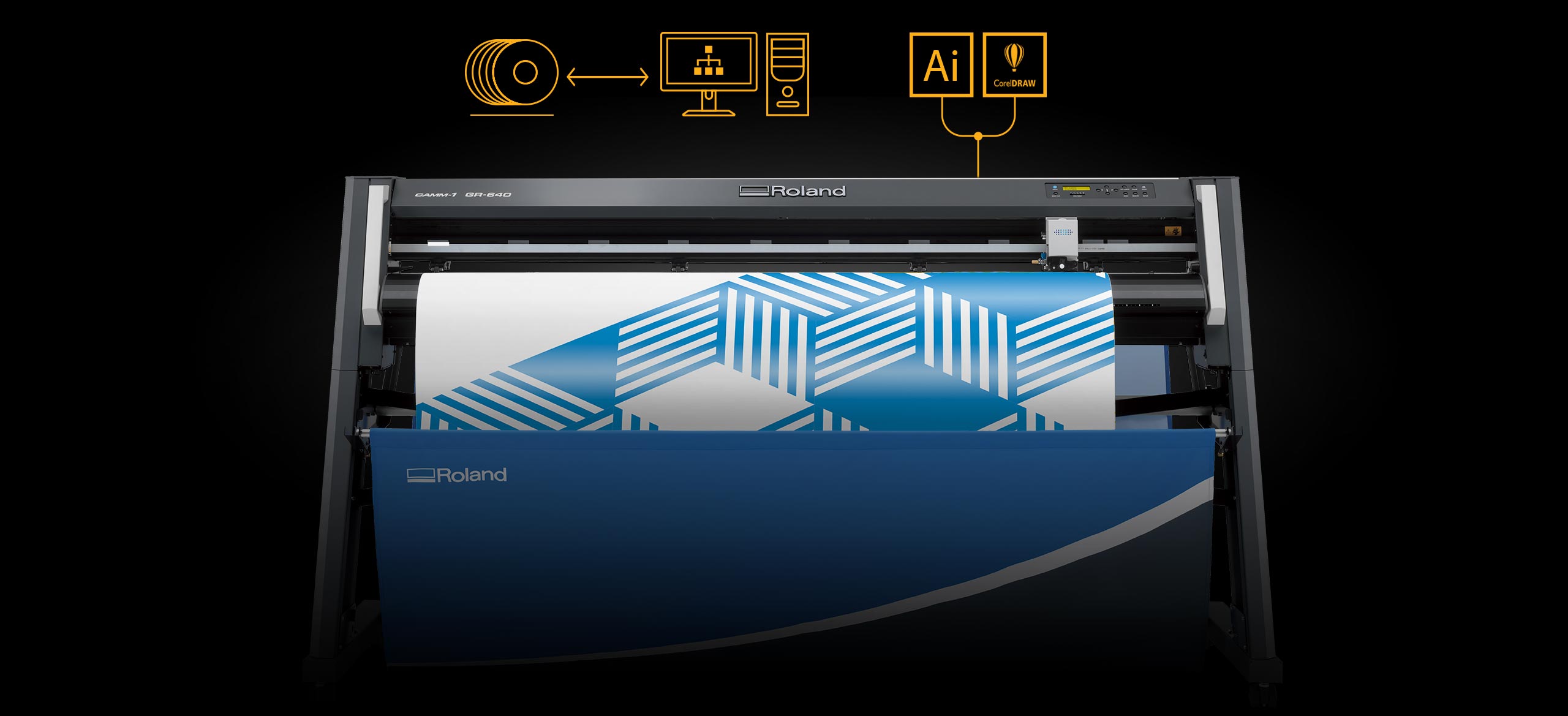

Use with Included CutStudio or Other Software
Includes Roland DG's CutStudio software and combines easily with other industry-standard software. Plugins for Adobe Illustrator (Mac and PC) and Corel Draw (PC) are also available as additional web downloads.
CutStudio Software Included
Roland DG's CutStudio allows designers to quickly and easily enlarge, reduce, re-position, rotate and mirror images. BMP, JPG, STX, AI, and EPS file formats are all supported. The latest version includes new scaling and cut-layer outputting functions.
Total Power and Stability
Powerful features and a stylish new machine build offer users unmatched speed and cutting strength.
- Overlap cutting (up to 10x) to cut accurately through thick materials
- 600gf of down force for more media options
- Fastest cutting speed in its class at 1,485mm/s
- The industry's most powerful cutting motor for precise, dependable production
- Includes storage trays, handles and basket levers with convenient media basket
- Integrated media holder supports media rolls up to 40 kg

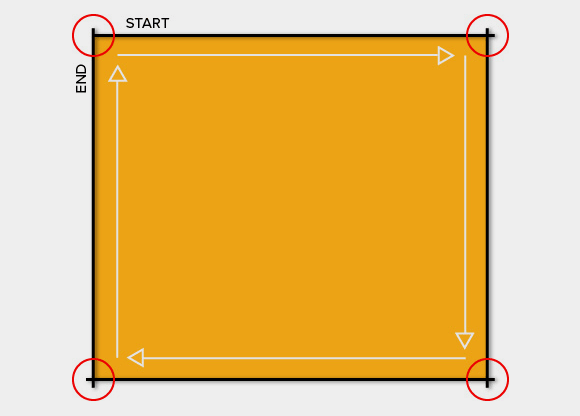

Overcut Function for Clean and Sharp Edges
GR cutters feature overcutting (tangential emulation) of .04 inches (1 mm) to ensure sharp edges. Overcutting corners is the process in which the blade travels past the cut line before the blade is lifted, turned and rotated toward the new cut direction in advance of the new cut line. The result is sharp, clean cuts with easy to weed corners.
Vinyl Cutter Self-Maintenance Kits
Although your Roland DG cutter was built-to-last, it’s probably been in constant use for many years now and would benefit from new parts. To keep it cutting with the same power and effectiveness for many years to come, Roland DG now offers Cutter Self-Maintenance Kits for the CAMM-1/CAMM-1 PRO cutters, including the GS-24, GR series and GX series vinyl cutters.
